Dial lock

Here we show you how easy the assembly is.

Installation

The manuals show you how easy the installation is.

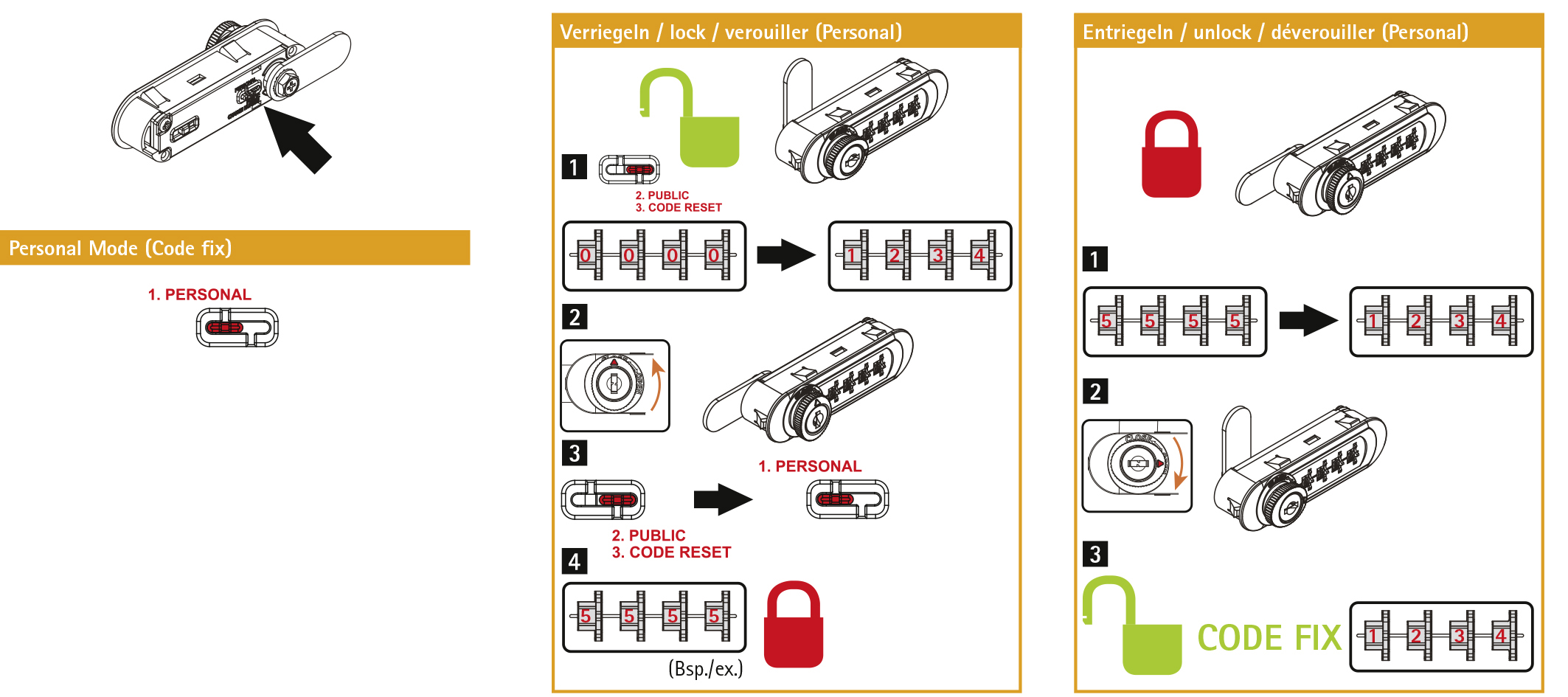

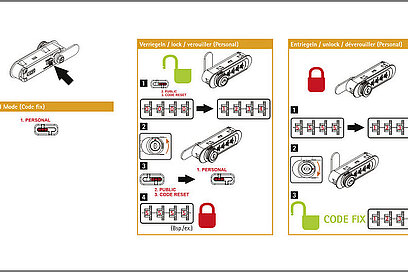

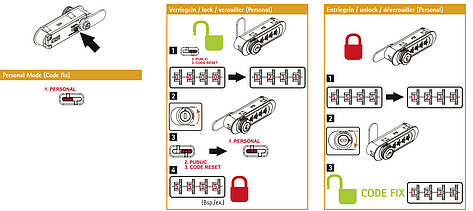

  • Personal mode (code fixed)

    Once set, the lock combination remains valid when the door is re-opened.

    • Personal mode (code fixed)

      Drawing, JPG, 630 KB

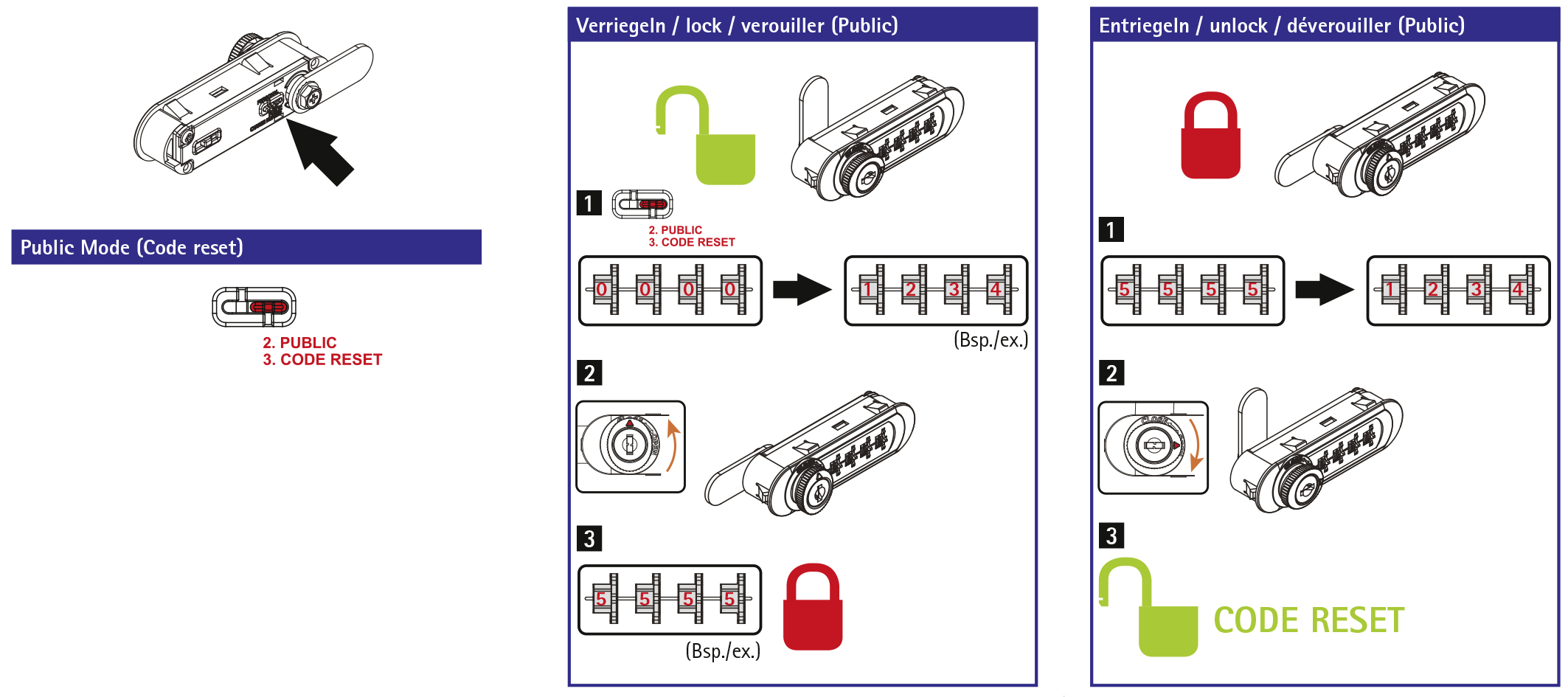

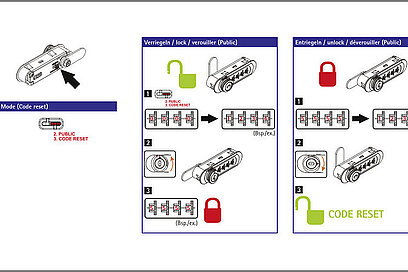

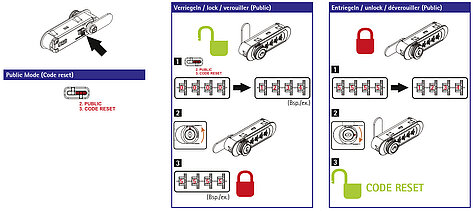

  • Public mode (code reset)

    The lock combination can be reallocated after each time of unlocking (function is the same as for a coin operated locker).

    • Public mode (code reset)

      Drawing, JPG, 580 KB

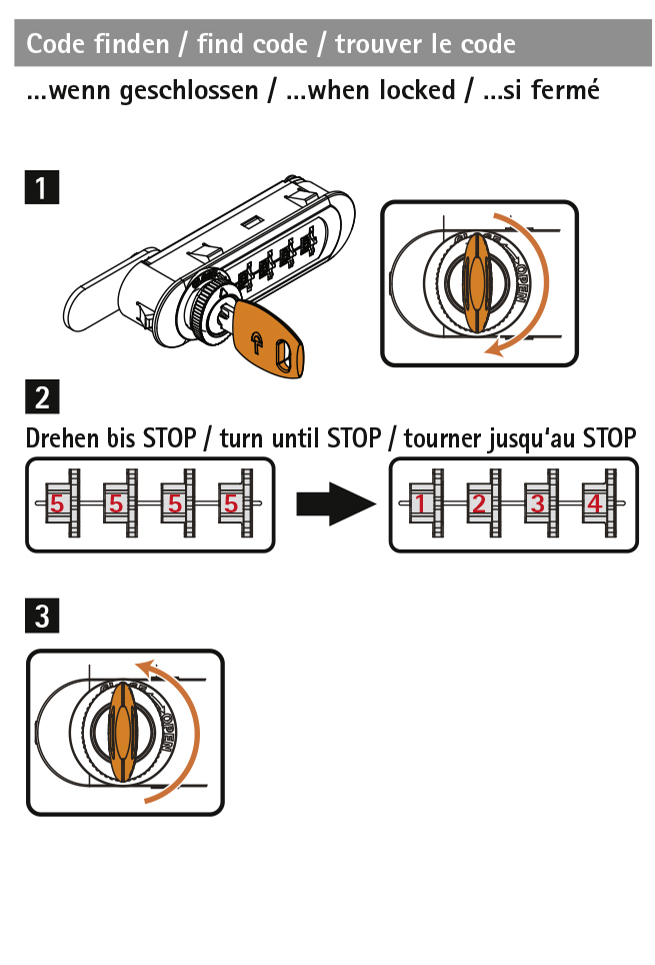

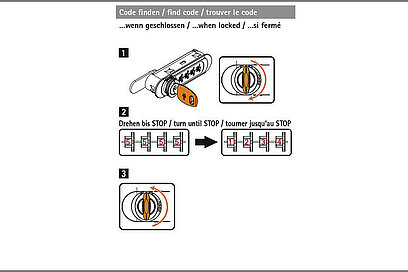

  • Key - for revealing the lock combination

    The key is not needed for locking but to make reveal the lock combination if it has been forgotten.

    • Key - for revealing the lock combination

      Drawing, JPG, 221 KB

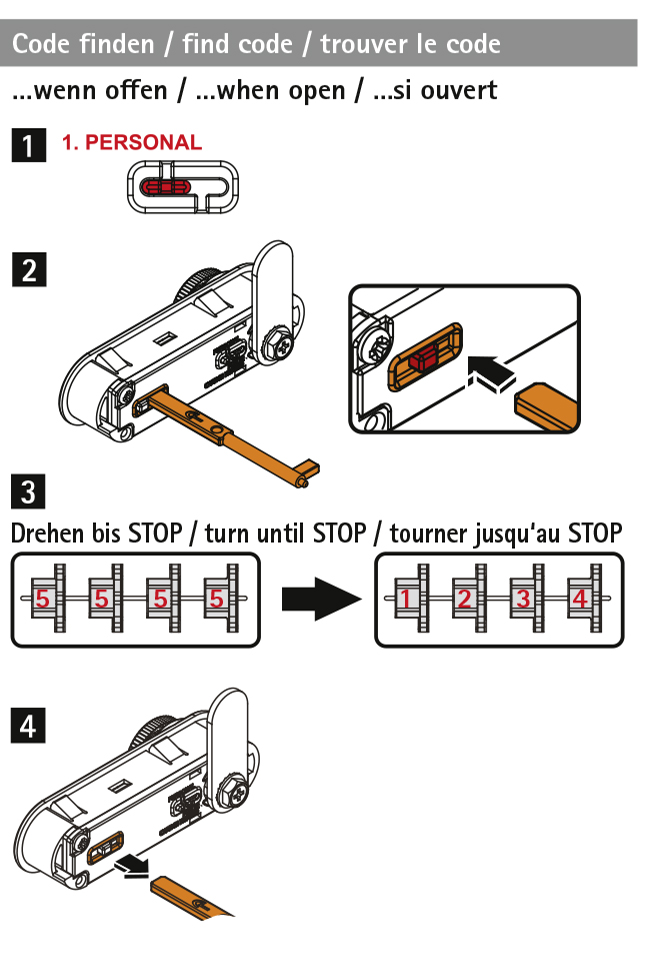

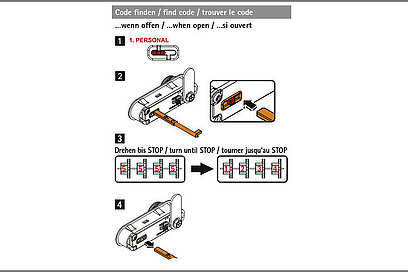

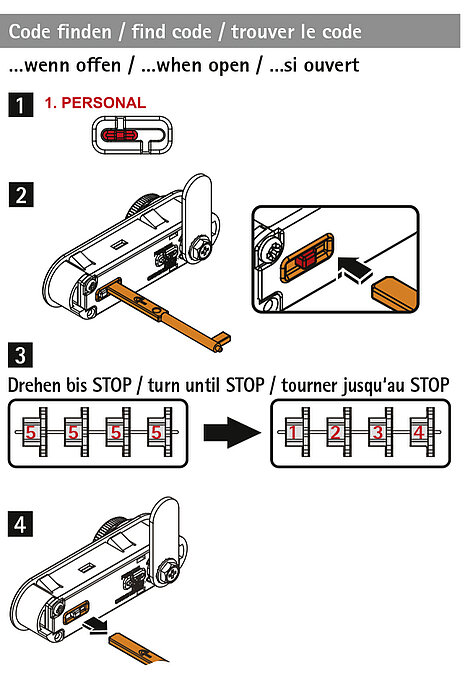

  • Tool - for revealing the lock combination

    The tool is not needed for locking but to make reveal the lock combination if it has been forgotten.

    • Tool - for revealing the lock combination

      Drawing, JPG, 236 KB
