Installation

The manuals show you how easy the installation is.

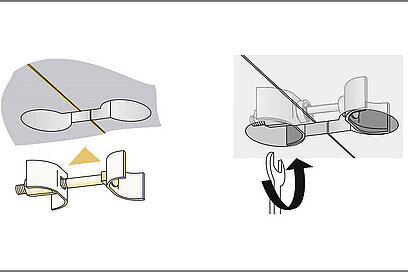

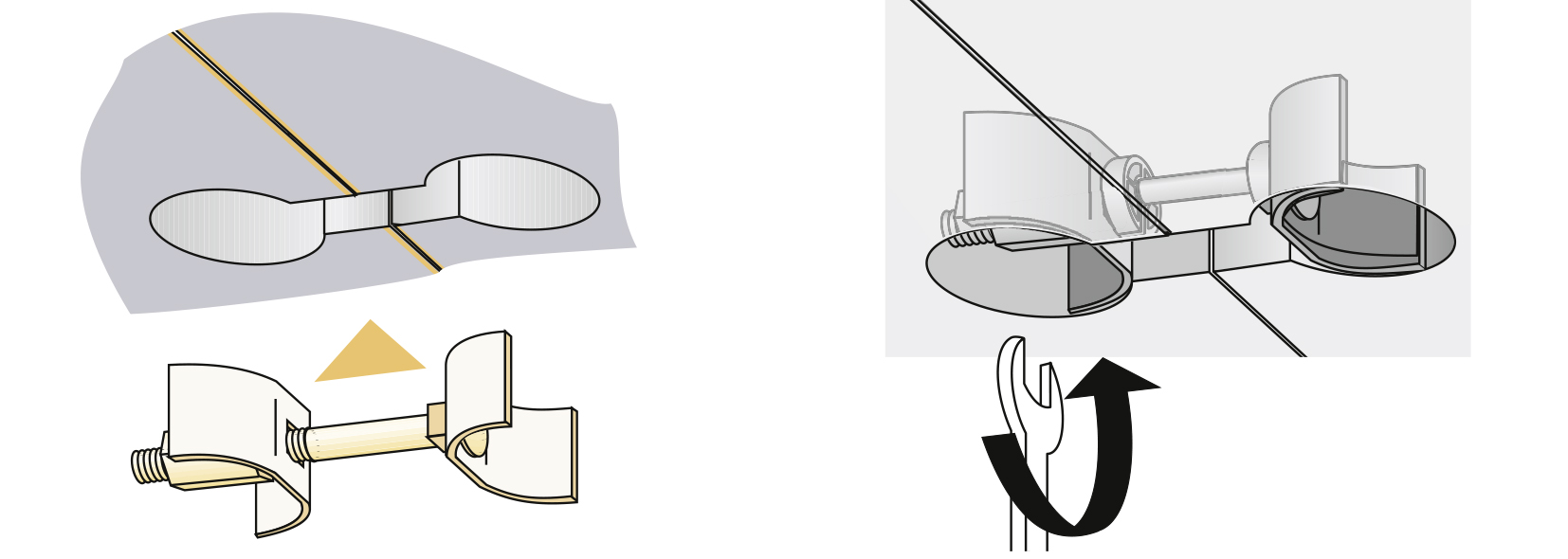

  • Worktop connectors

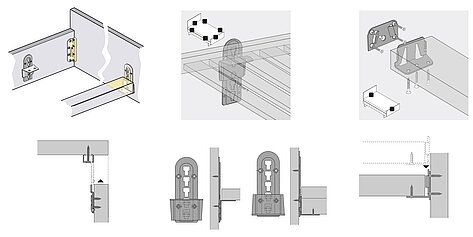

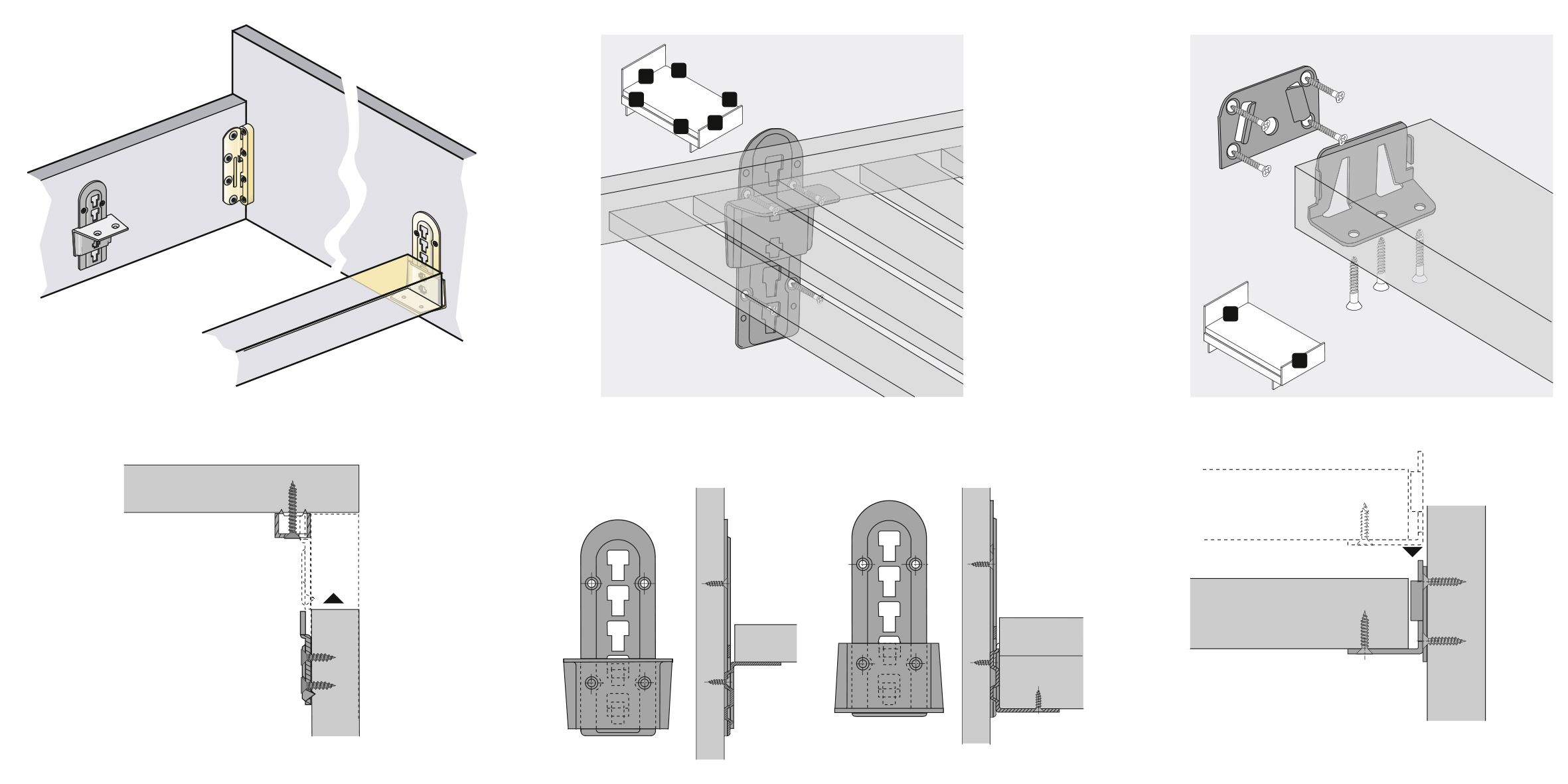

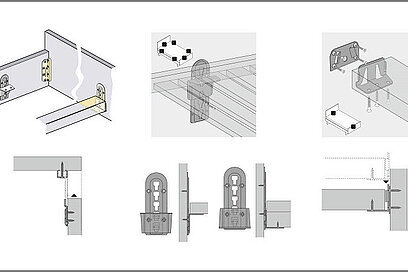

  • Bed connector

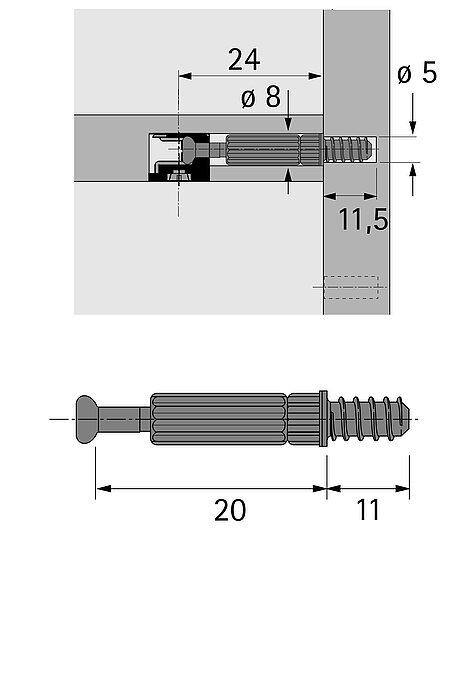

  • Screw in dowel

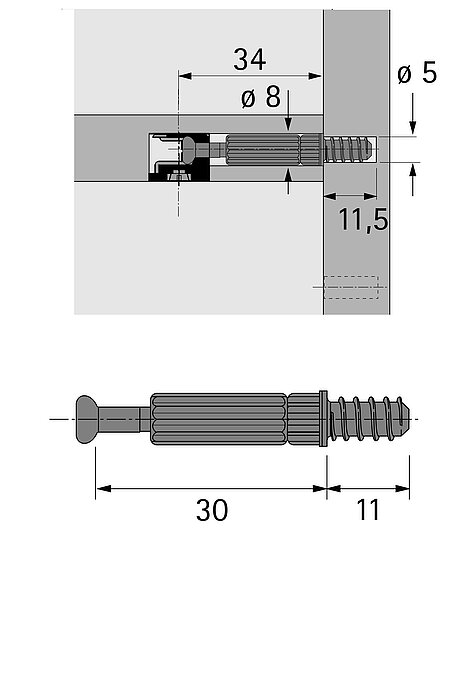

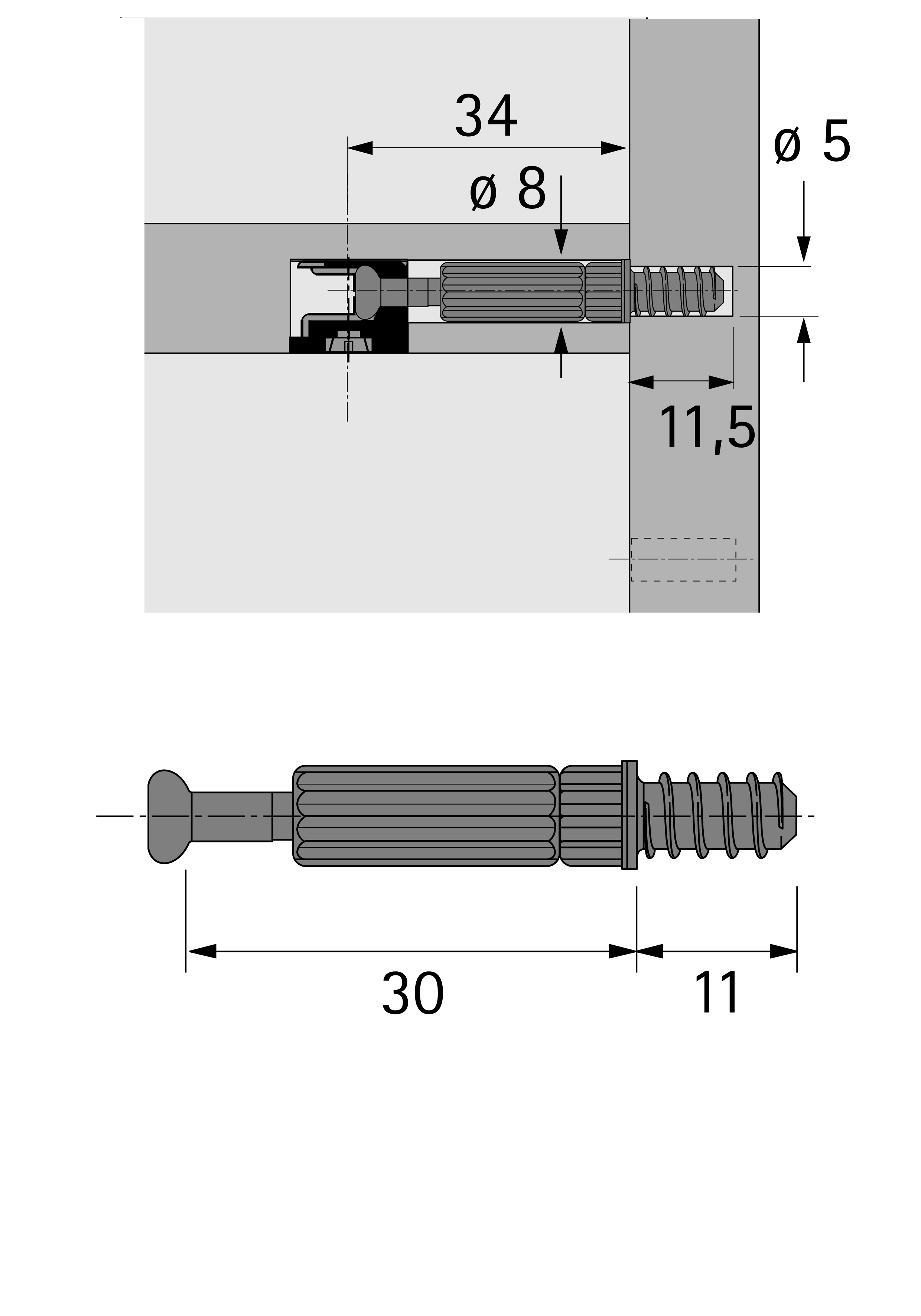

    • Rastex 15 connecting fitting (30 mm)

      Drawing, JPG, 1 MB

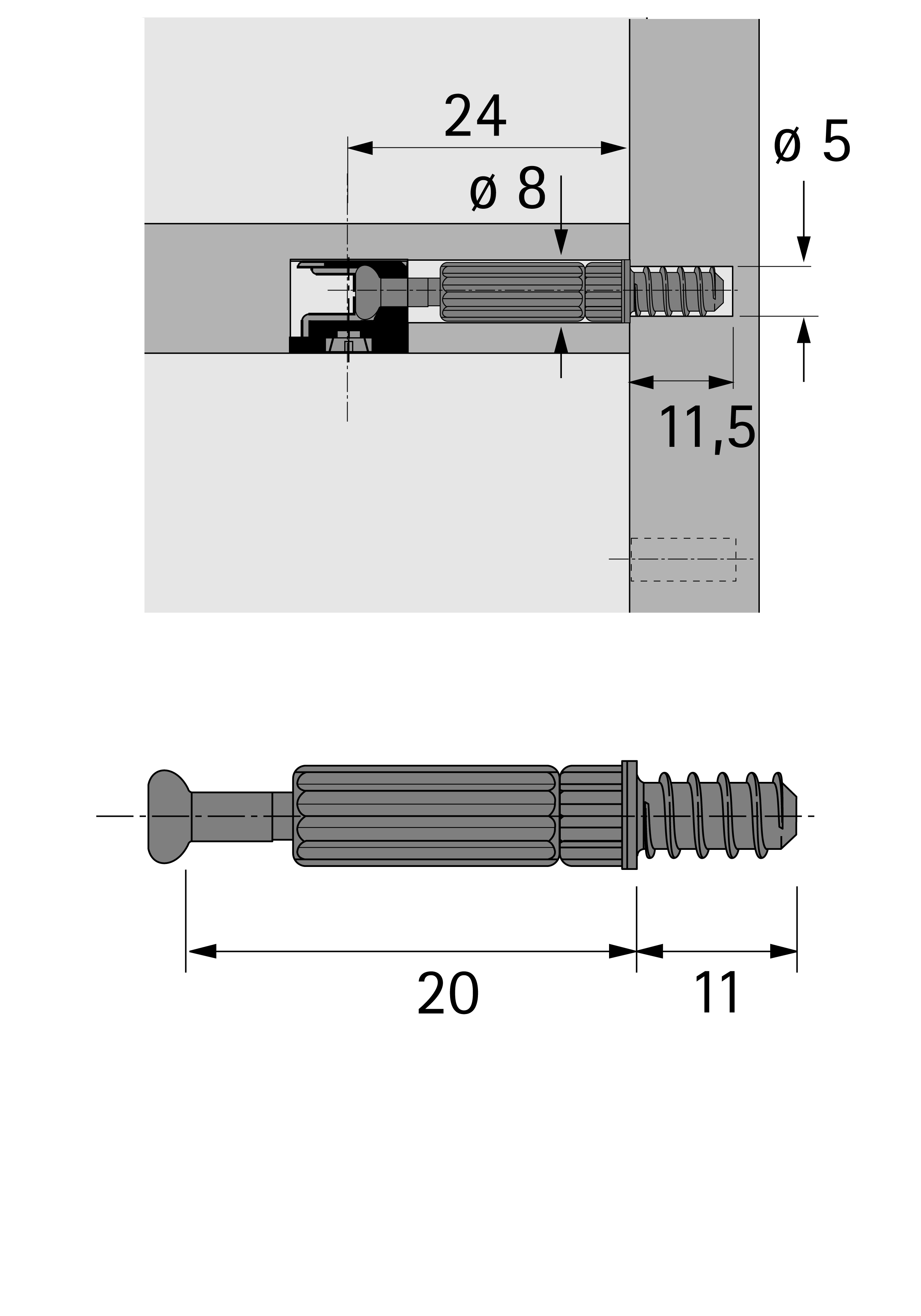

    • Rastex 15 connecting fitting (20 mm)

      Drawing, JPG, 1 MB

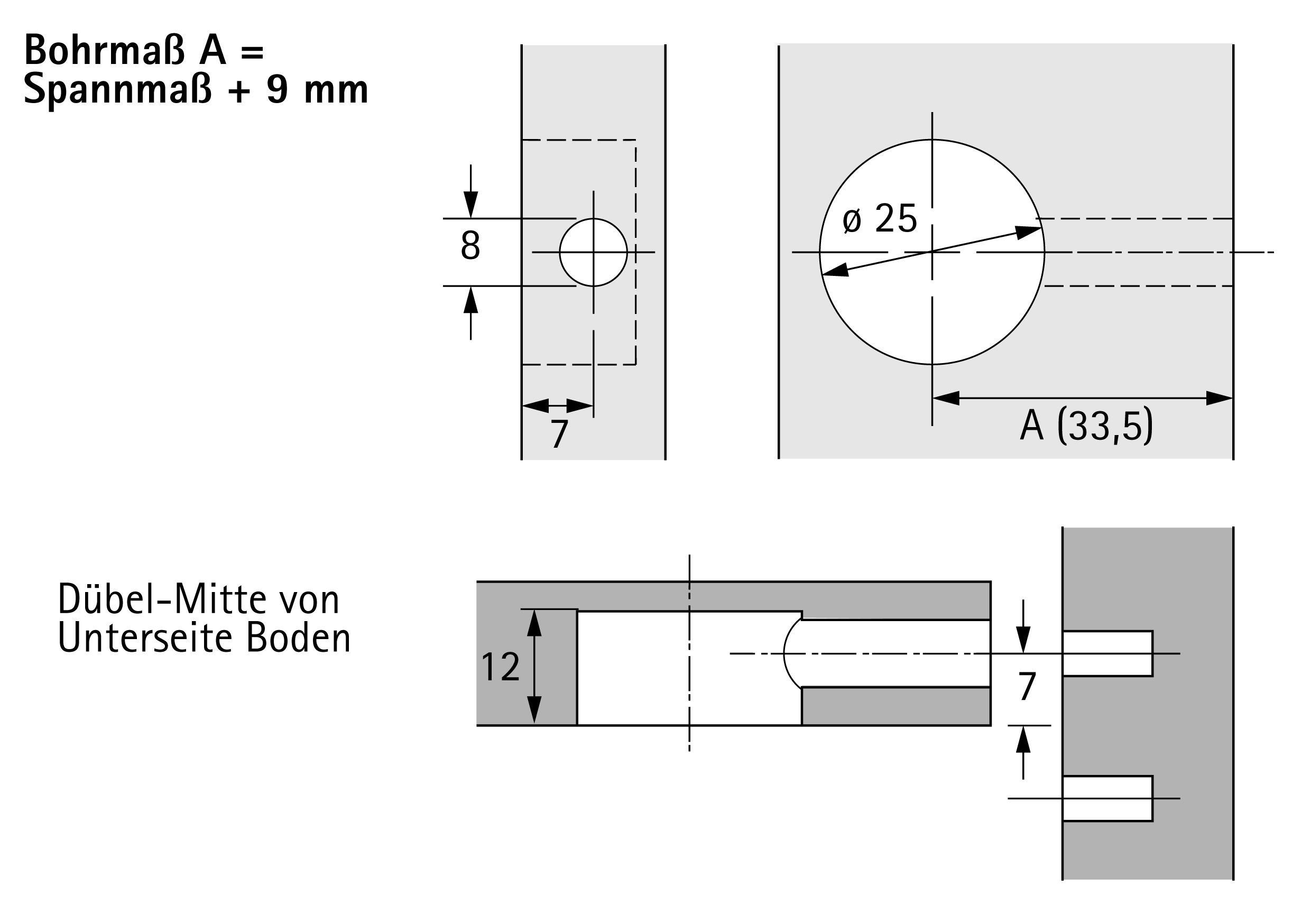

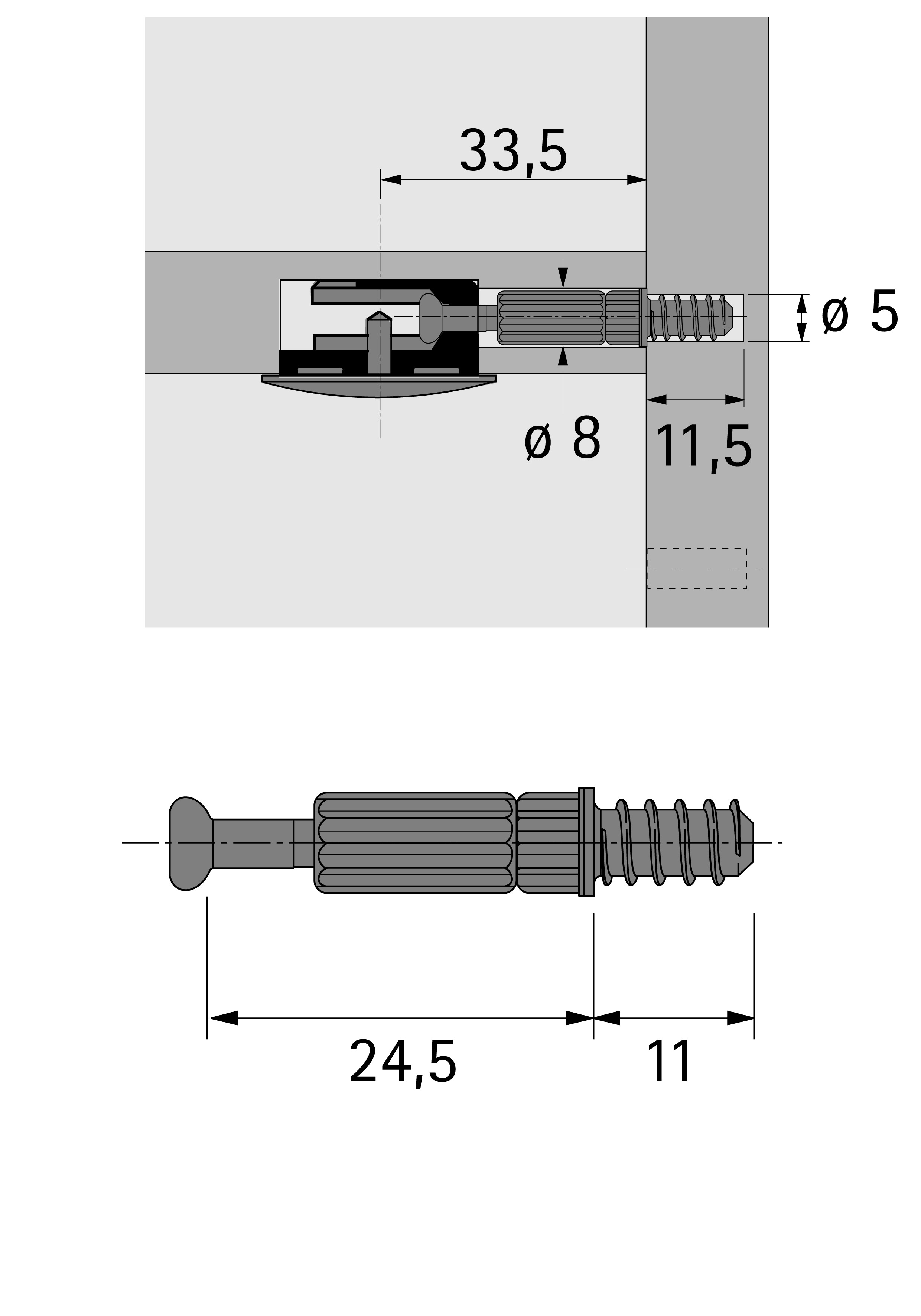

    • Rastex 25 connecting fitting (24.5 mm)

      Drawing, JPG, 1 MB

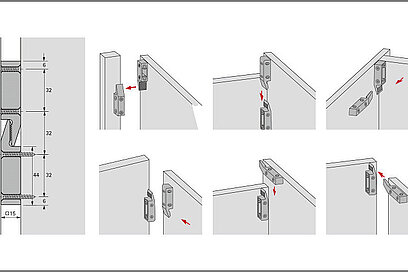

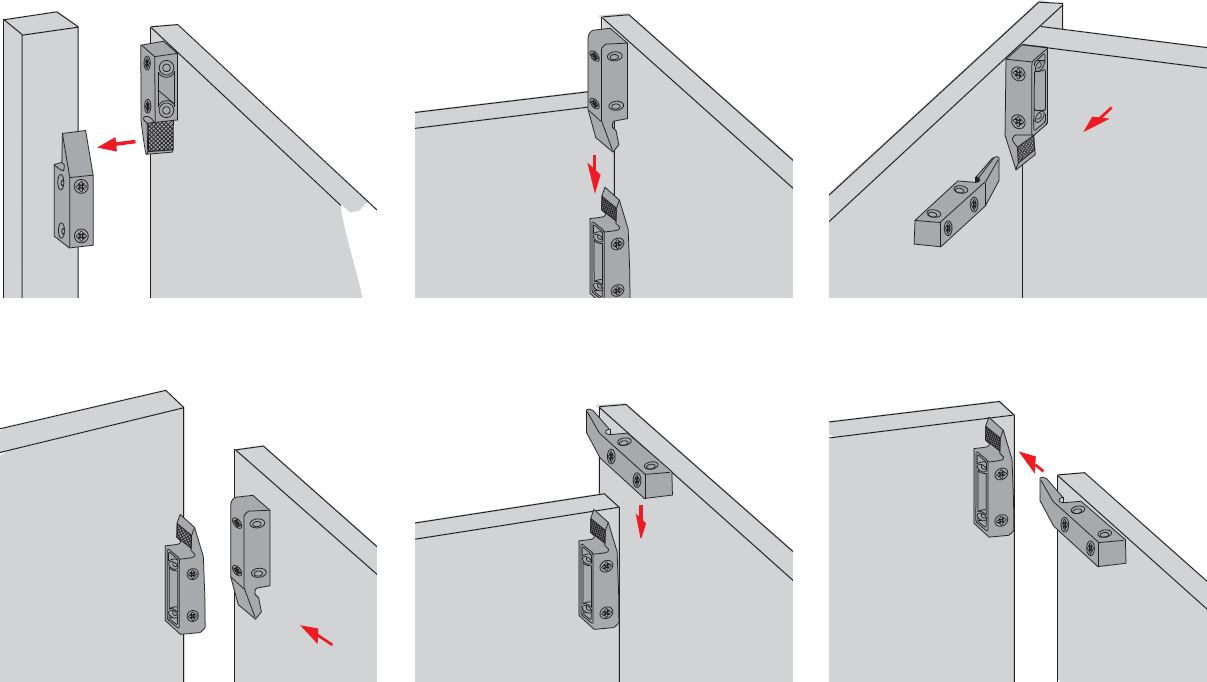

  • Multiclip

  • Rastex

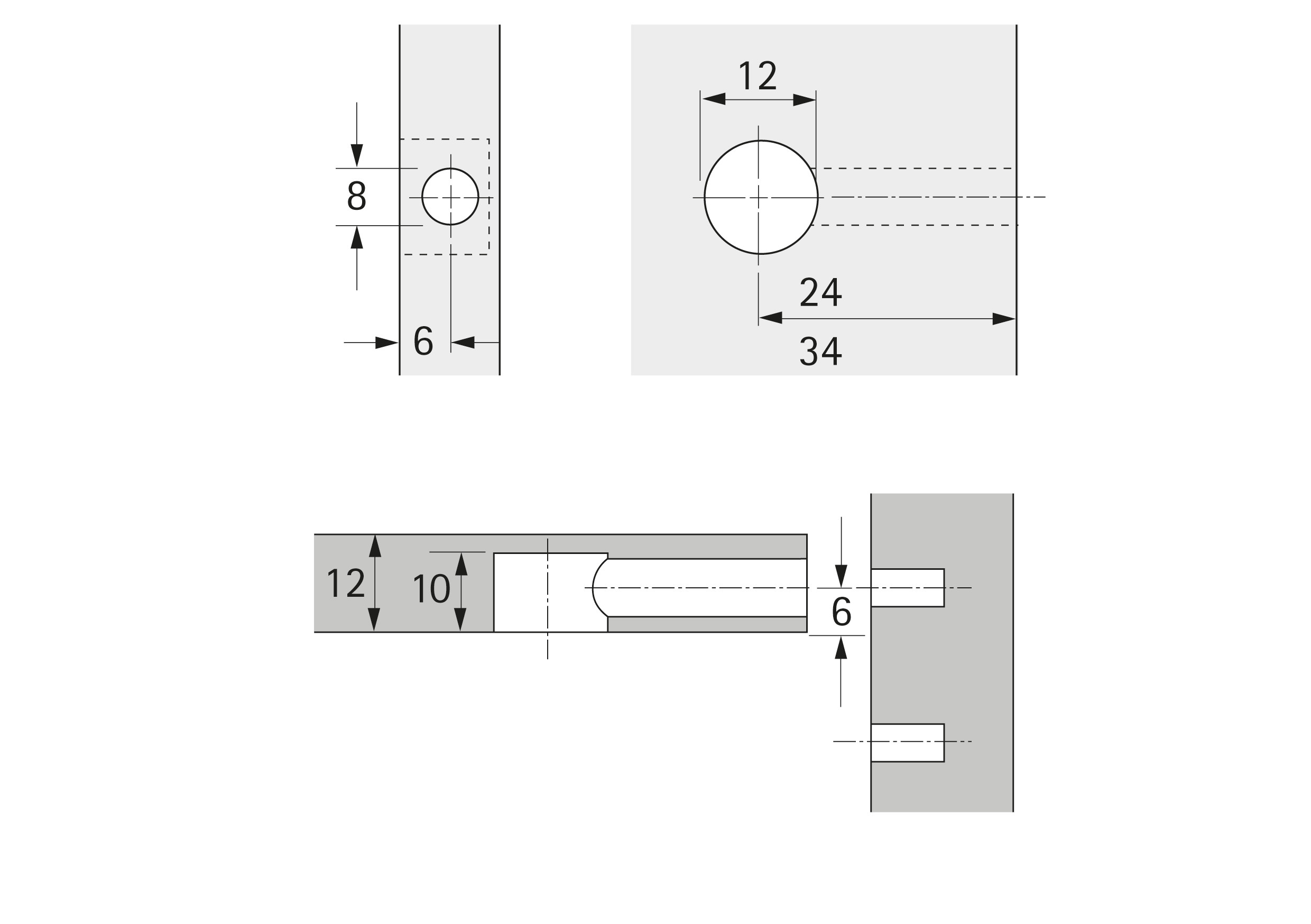

    • Connecting fitting Rastex 12

      Drawing, JPG, 123 KB

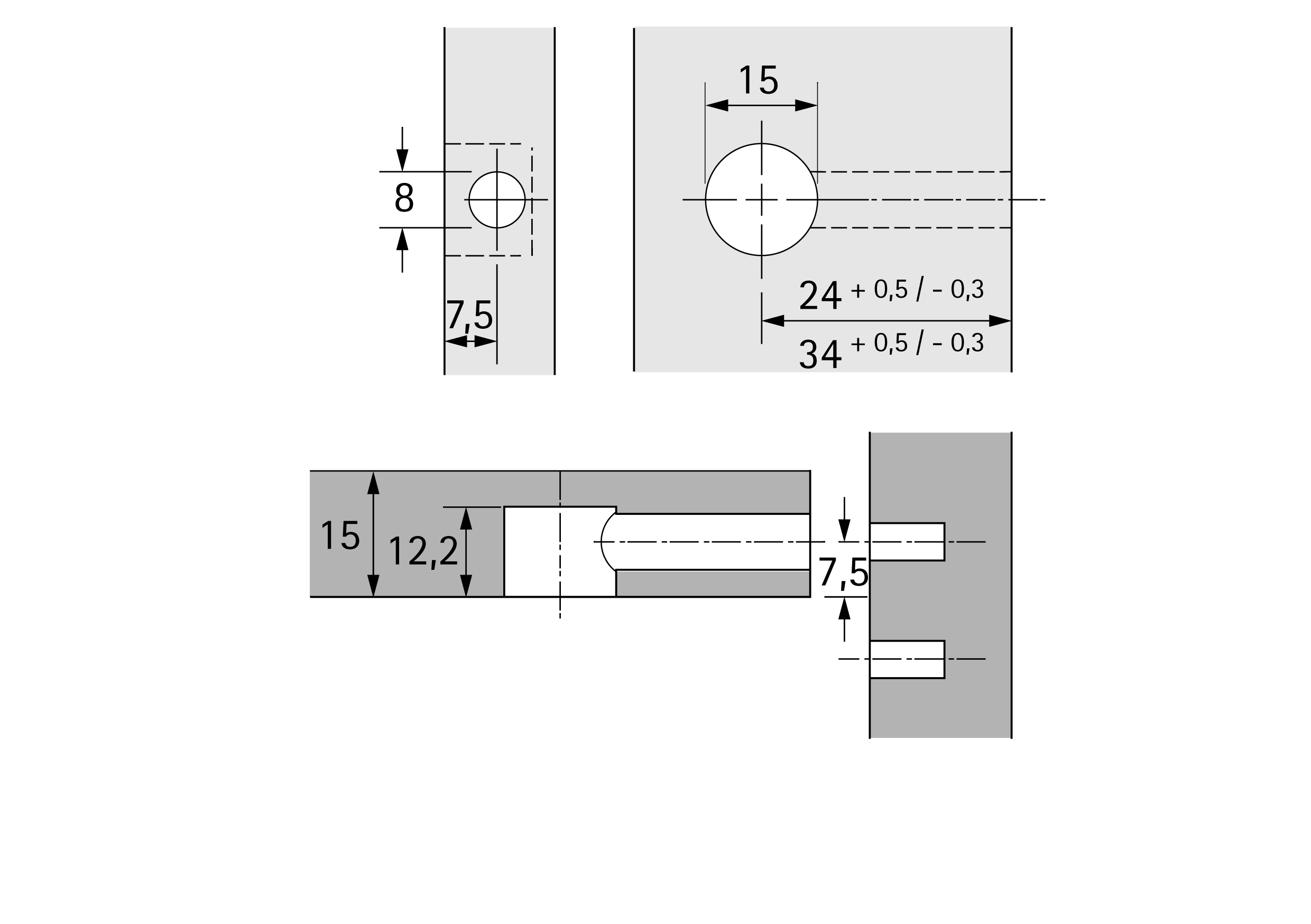

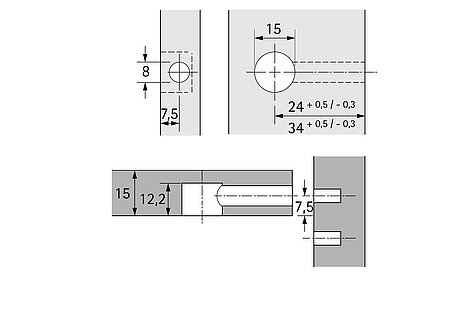

    • Connecting fitting Rastex 15

      Drawing, JPG, 835 KB

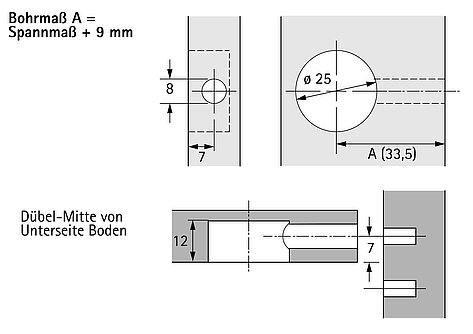

    • Connecting fitting Rastex 25

      Drawing, JPG, 905 KB

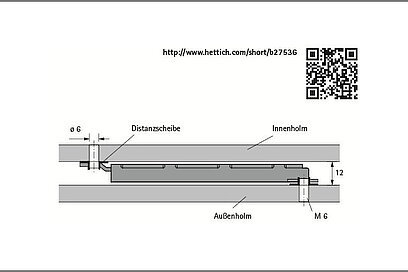

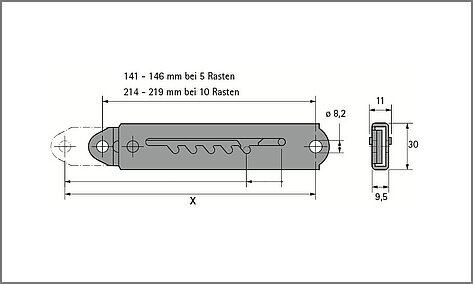

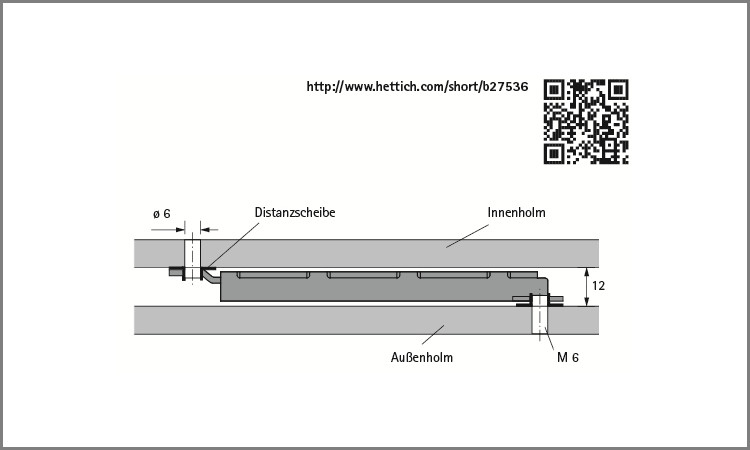

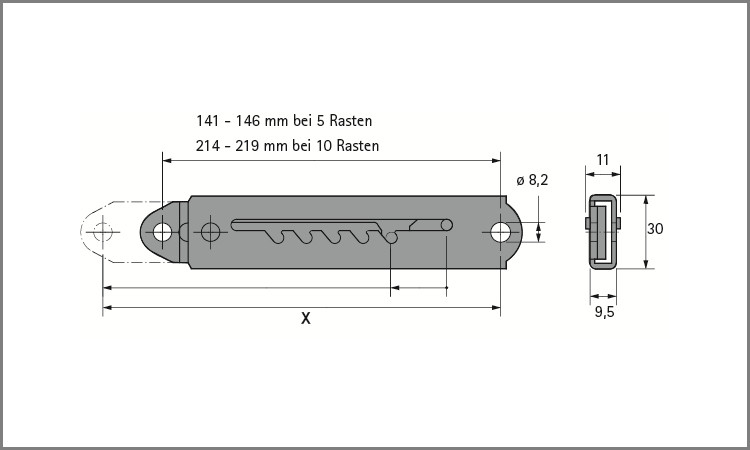

  • "Rastomat" adjustable bed frame fitting

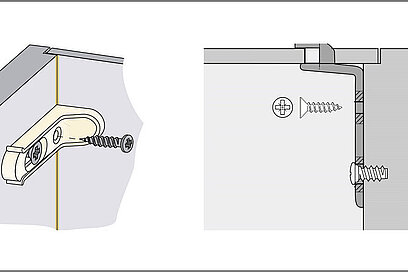

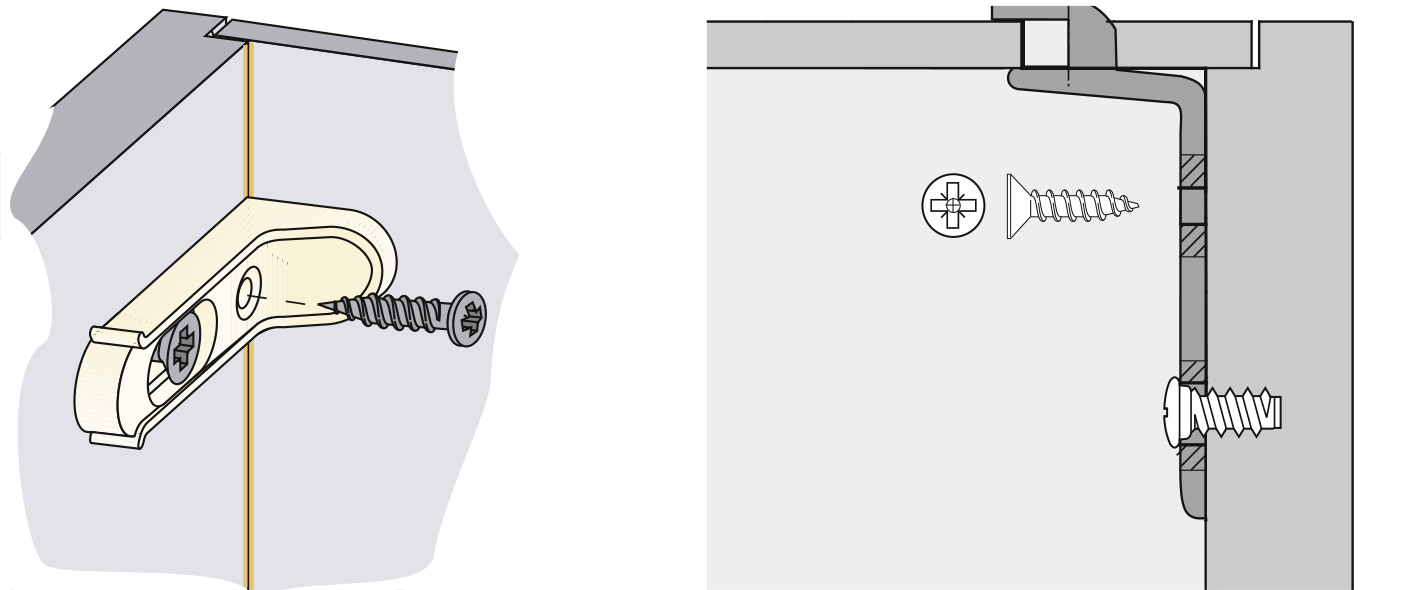

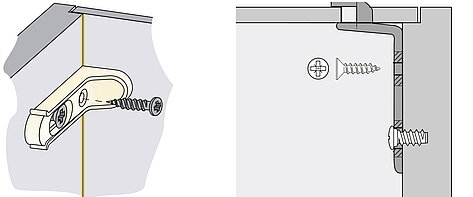

  • Rear panel connector

    • Rear panel connector

      Drawing, JPG, 168 KB

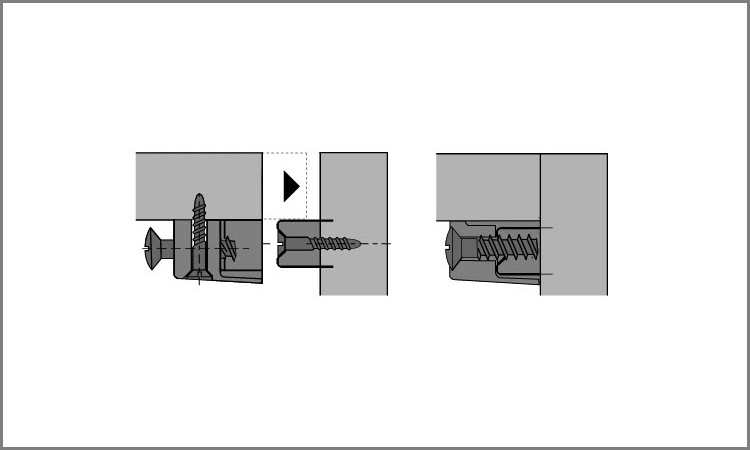

  • Trapez screw on connecting fitting

    • Trapez screw on connecting fitting

      Drawing, JPG, 24 KB

  • Connecting fitting

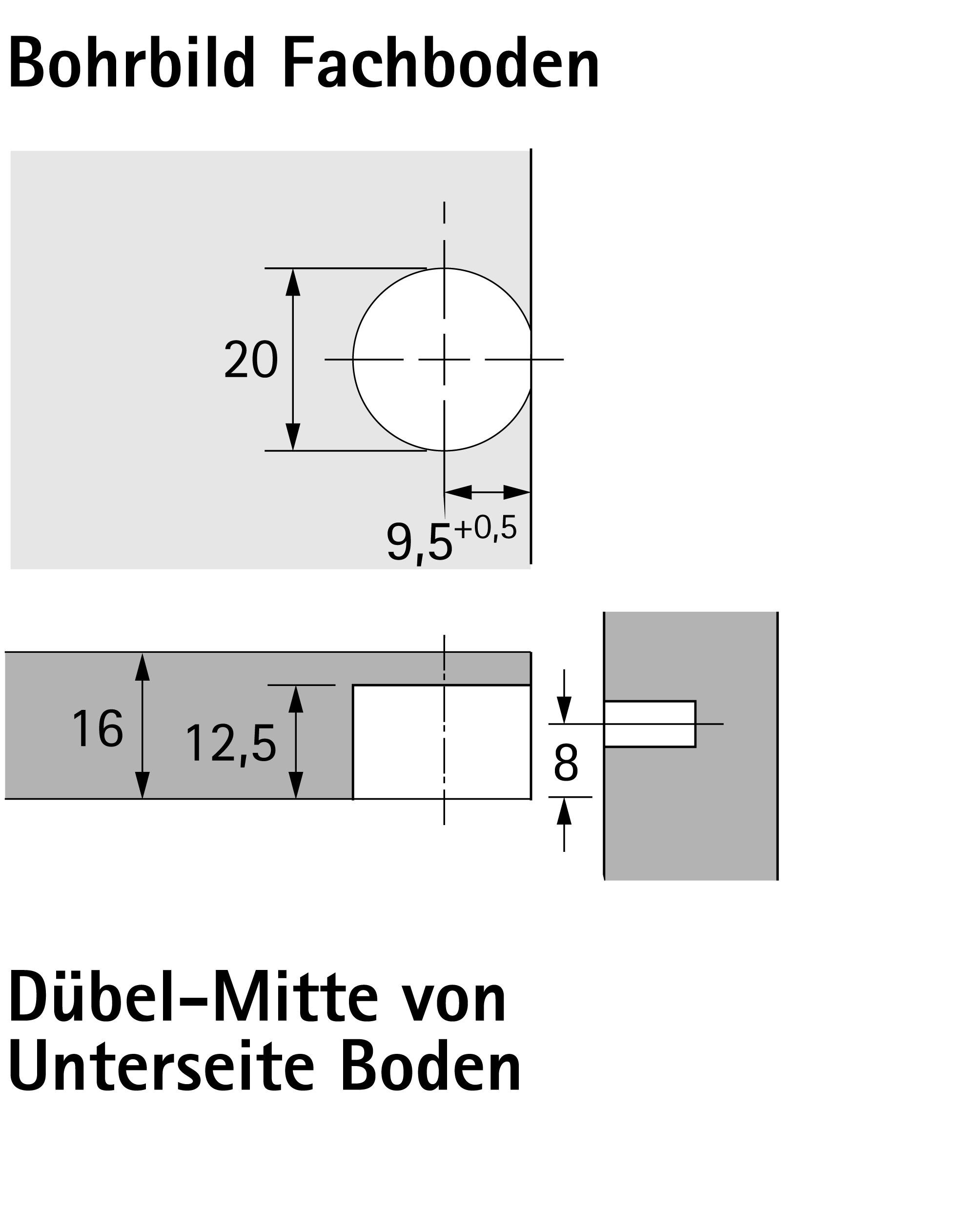

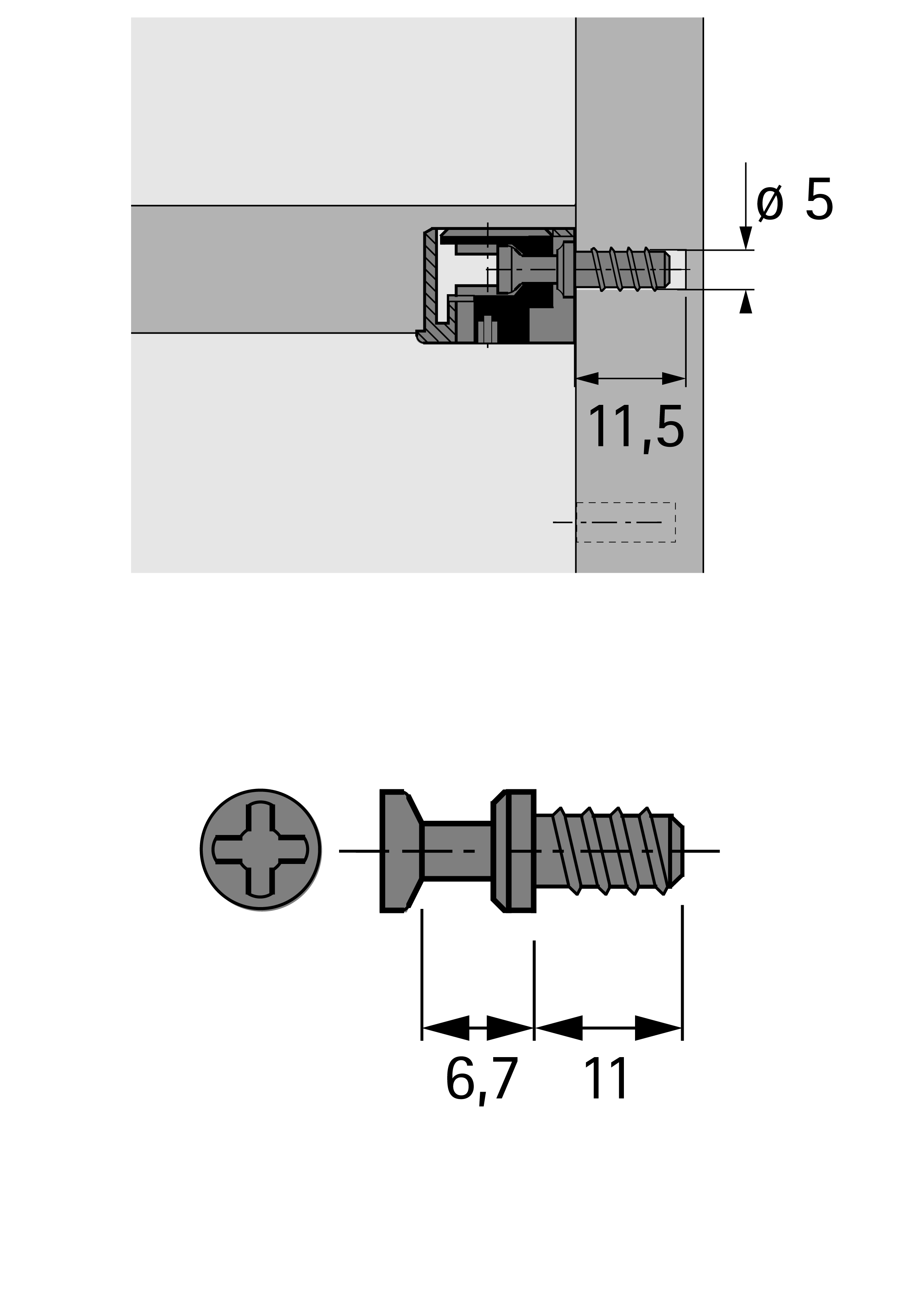

    • VB 35/16 connecting fitting (6.7mm)

      Drawing, JPG, 979 KB

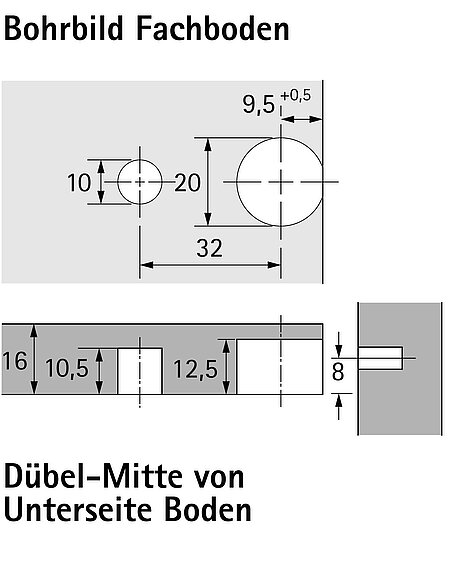

    • VB 36/16 connecting fitting (6.7mm)

      Drawing, JPG, 931 KB

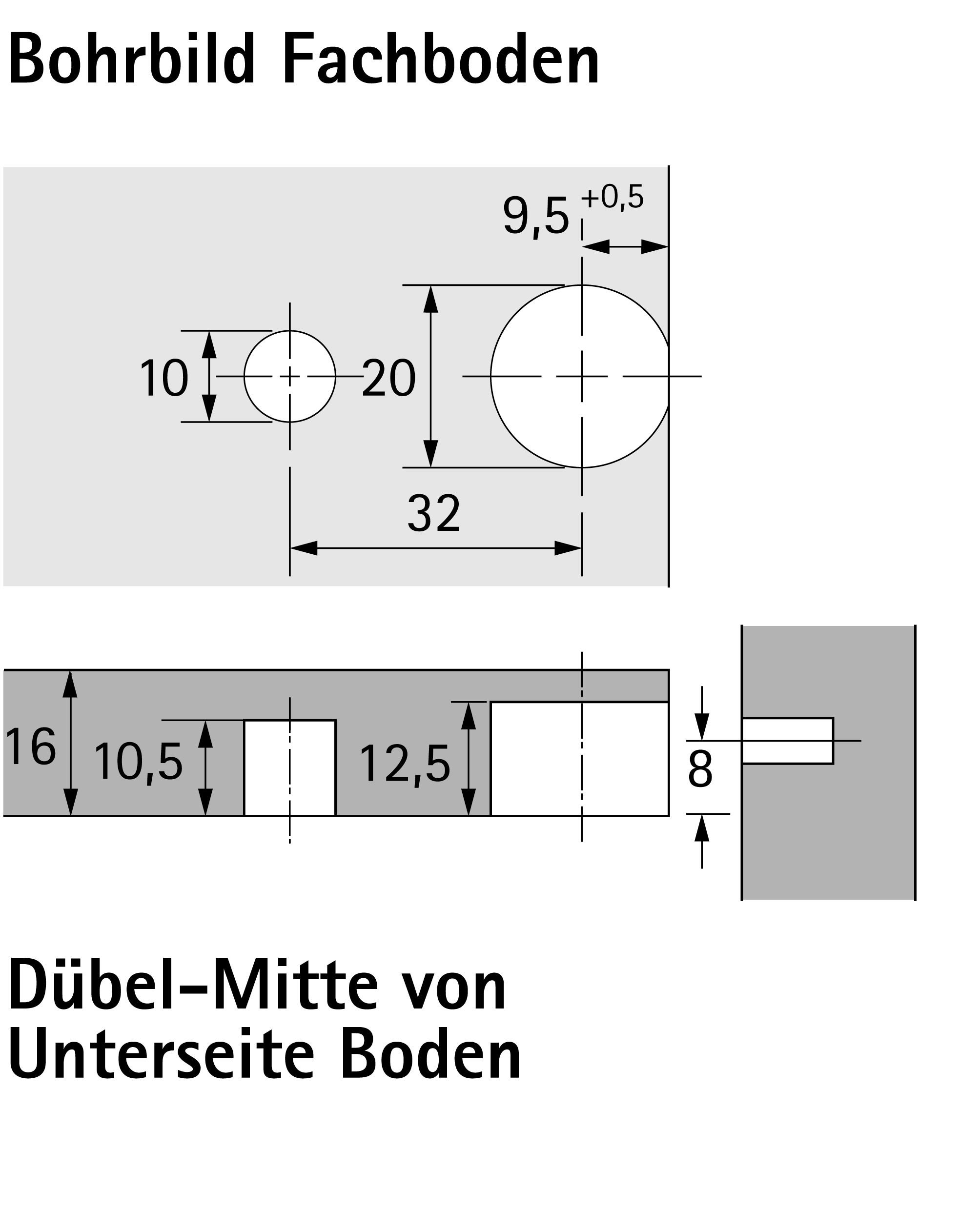

    • VB 36/16 connecting fitting with screw in dowel (6.7mm)

      Drawing, JPG, 974 KB

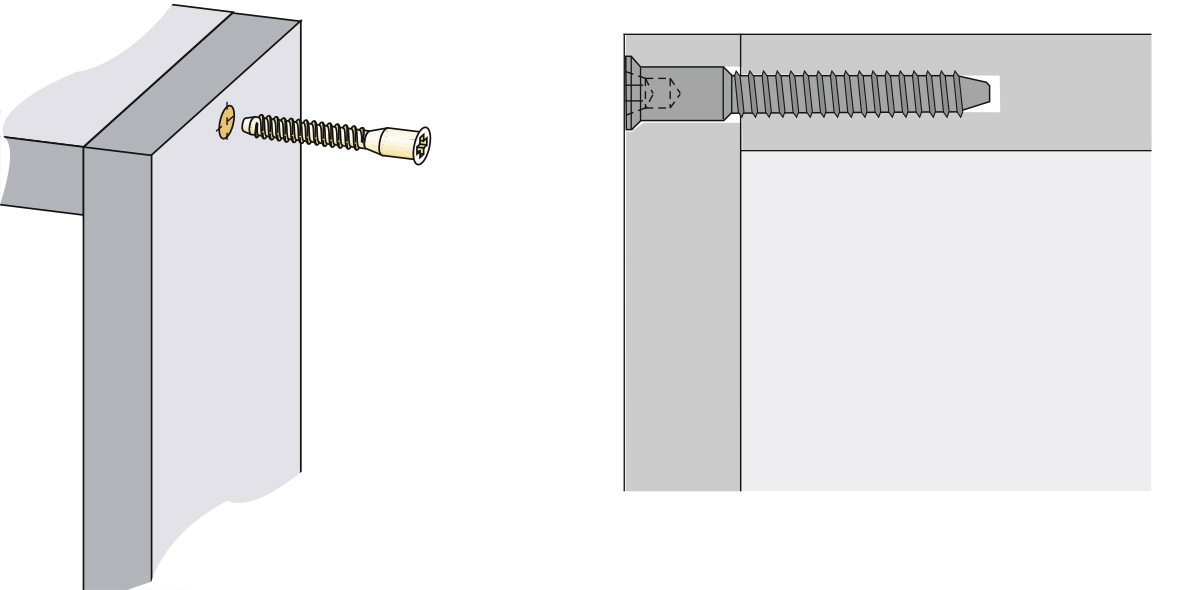

  • connecting screw

    A appropriate flat countersink bit can be used for providing the blind hole with effortless ease.
